A new Multi-Channel MRI Console

A preview of our new MRI console now with Multi Channel support, launching in 2024!

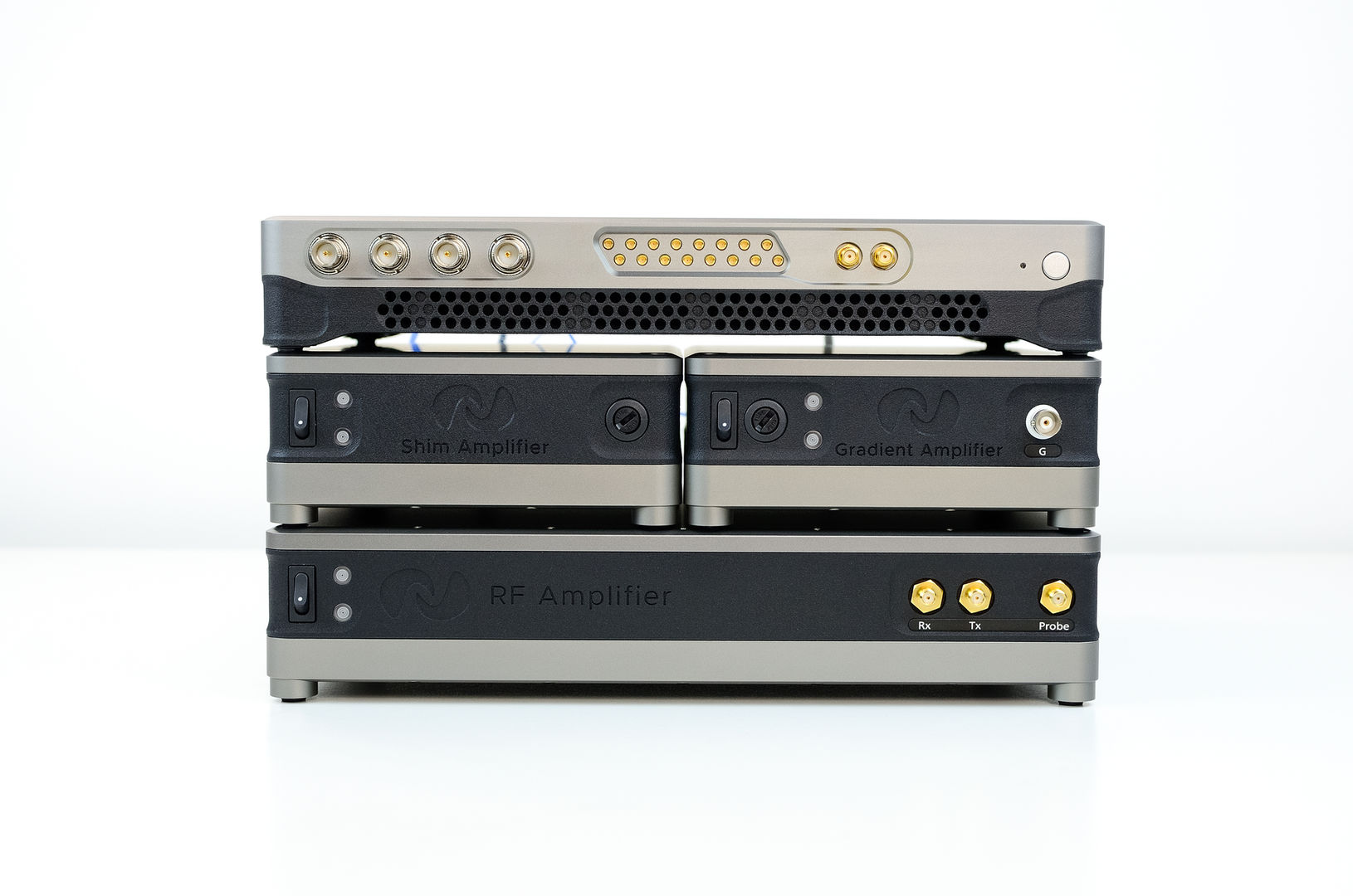

front view of multi channel console

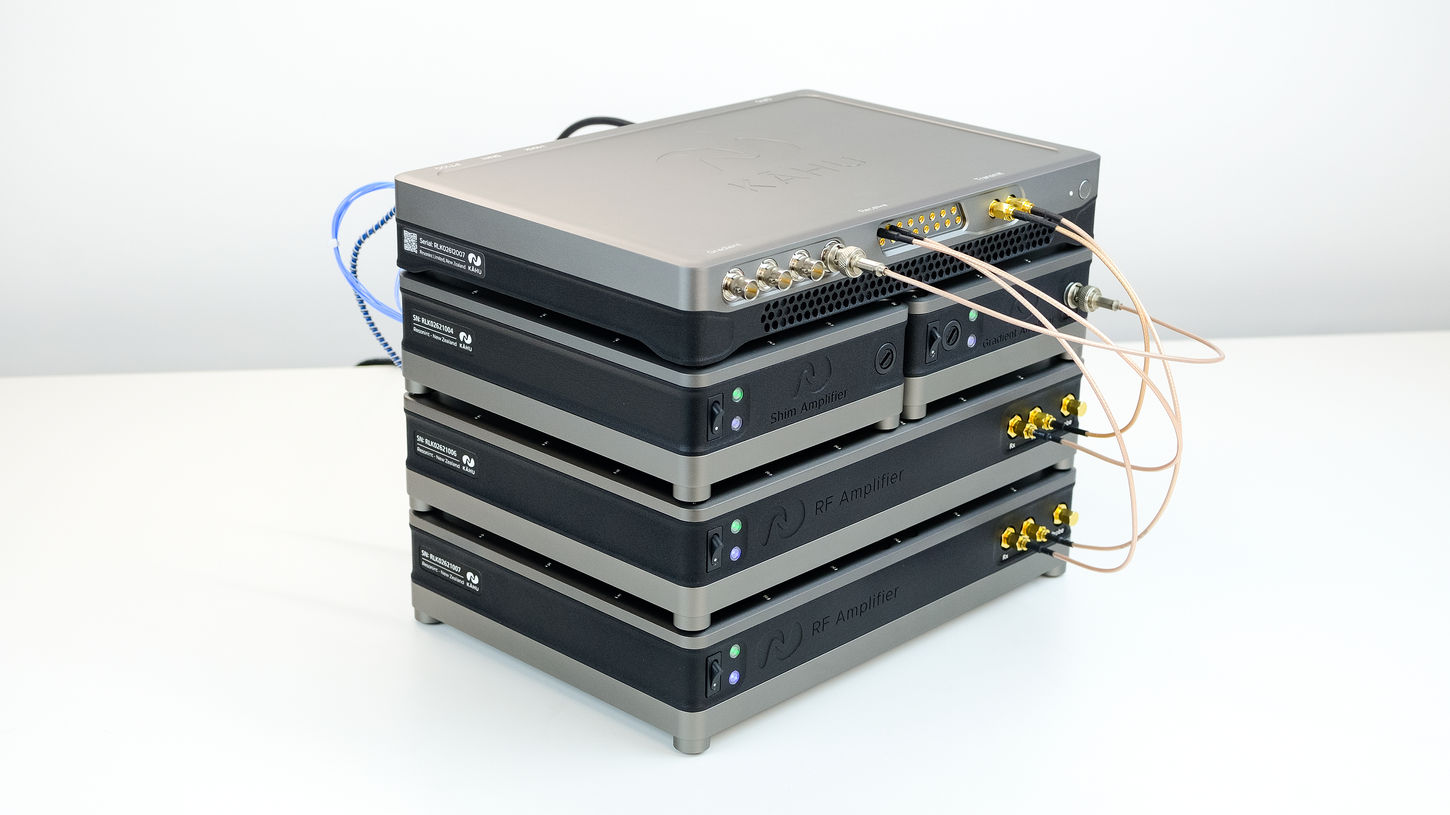

back view of multi channel console

Technical Specifications

Note that the specifications of the final product may change, you can subscribe to our news feed using the form below.



Frequency Range

100kHz-120MHz

Transmit

2x 16-bit DAC’s @ 500MSPS

Receive

4x 16-bit ADC’s @ 100 MSPS (other options available)

Digital Recieve Processor

FPGA based, 32-bit quadrature

Main Processor

Quad-core ARM Cortex-A53

Real Time Pulse Sequencer

500 MHz Dual-core Arm

Operating System

Linux

Memory

4 GB 64-bit DDR4

Ethernet

2x 1 Gbit Ethernet

Real Time Clock

Embedded Platform

RF

Fast Digital IO

16 channels pulse program controlled

Slow Digital IO

16 channels API controlled

Gradient Controllers

4x 16-bit 100 kSPS

Shim Controllers

16x 16-bit 50 kSPS

Temperature Sensor

2x 24-bit PT100 Inputs

Optical Transceiver

SFP+

Interface

JupyterLab Environment with GUI Experiments and Python Notebooks

Python Notebooks

Customize experiment methods, data processing, & visualization

Pulse Programs

Python-based pulse sequence programming

API

Run experiments & acquire data programmatically

Power Supply

24V DC Input, 80W

Dimensions/weight

300 x 200 x 60 mm / 2.8 Kg

Software/General
I/O
